Dell Precision T7500: A 96GB, 24TB Upgrade Plan for an Old Workstation

The Precision T7500 is a dual-Xeon Dell workstation from around 2010. It's big, it's loud-ish, and it takes a ridiculous amount of RAM for something you can buy used for not much money. That combination makes it a good home for virtual machines and a pile of storage.

This is my upgrade plan for it, written in 2024. It's a plan: some of this is sorted and some isn't, and I've called out the part I'd want to verify before ordering.

What I'm starting with

• Dual Xeon workstation platform
• Existing RAM, which is getting replaced outright
• A basic onboard SATA controller
• Not much storage

The CPUs are fine for what I want. Memory and storage are what hold it back.

The plan

Phase	Part	Why
1. Memory	DDR3 ECC registered, 3 sets of 4x8GB (96GB total)	Room for a lot of VMs and heavy apps
2. Controller	LSI 9207-8i 8-port SAS/SATA, 6Gb/s, PCIe	Better storage performance and more drives
3. Cables	BENFEI SATA III cables, 3-pack, 18-inch, locking latch	Connections for the new drives

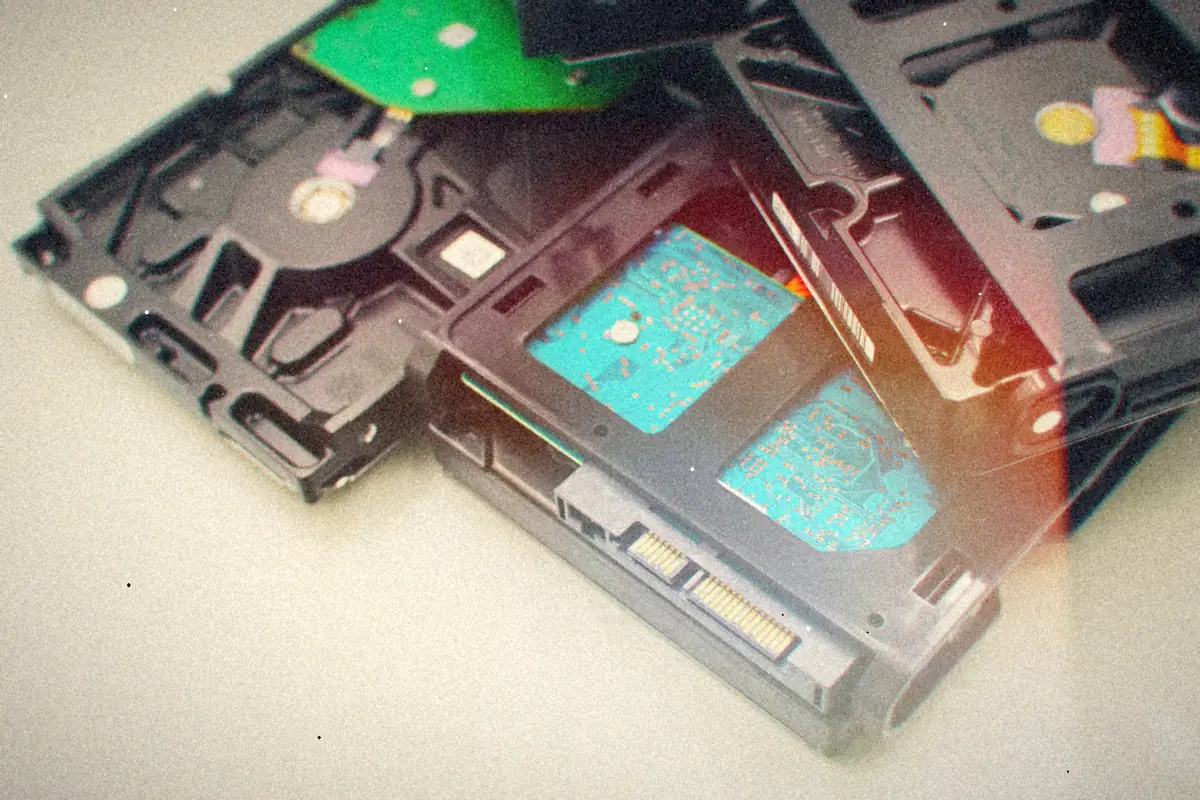

4. Drives	Two Seagate BarraCuda Pro 12TB, renewed, 7200RPM, 256MB cache	24TB of storage
5. Mounting	Dell DN8MY 3.5" HDD caddies, 2-pack	Drives mounted and cooled the way the case expects

It all added up to $429.94 at the time, and the two renewed drives were more than half of it. The RAM was the bargain: 96GB of used ECC DDR3 cost less than one of the hard drives. Server memory from that generation is everywhere, because data centers retired it by the truckload.

Things I'd check before ordering

All 12 memory slots need the second CPU. 3 sets of 4 sticks is 12 DIMMs. The T7500 puts some of its memory slots on the riser that holds the second processor, so 96GB only works if both sockets are populated with the riser in place. Mine's a dual-Xeon, so this should be fine, but it's the first thing I'd confirm on anyone else's.

The cables. This is the one I'd fix in the plan. The LSI 9207-8i has two internal mini-SAS (SFF-8087) connectors, not SATA ports. To hook SATA drives to it you need SFF-8087 to 4x SATA breakout cables. The plain SATA III cables on my list would work for drives on the motherboard's own SATA ports, but not off the LSI card.

Heads up

If you're copying this parts list, swap the SATA cable line for SFF-8087 forward breakout cables if you want the drives on the controller. One breakout handles four drives.

Renewed drives are renewed. A pair of refurbished 12TB drives is great value, but I'd treat them as storage that needs a backup, not as the backup. Run a full surface test before trusting anything to them.

Tip

Cards like the 9207-8i are usually sold flashed to "IT mode", which just passes drives straight through to the OS. That's what you want for software RAID, ZFS or plain drives. Check the listing says so.

What it's for

With all of that done, the T7500 ends up with a lot of RAM, a proper storage controller, 24TB of disk and drives that are mounted the way Dell intended. That's a good fit for:

• Hosting virtual machines
• Content creation
• Bulk data storage
• Scientific and number-crunching workloads that want cores and memory more than a new CPU

It won't beat a modern desktop at single-threaded anything. It doesn't need to.

What's next

Sort out the breakout cables, confirm the memory layout with the riser, and then it's a Saturday with a screwdriver. I'll follow up once it's running and I've got VMs on it.
